PRODUCT DETAILS (NHS – 120 – 12)

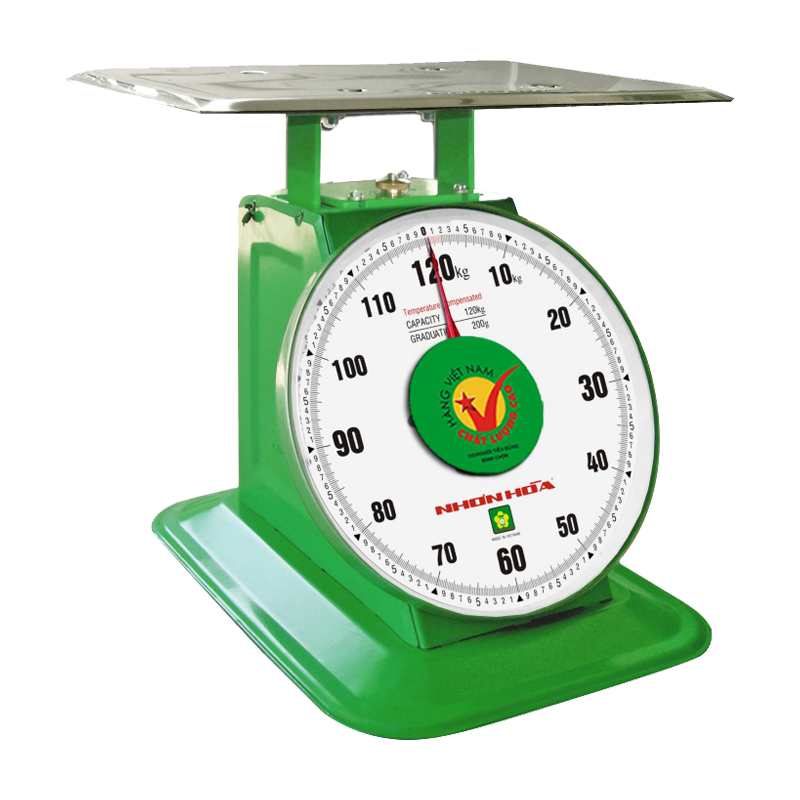

Single face scale 120 kg is a large capacity scale being widely used in markets, commericial centers, retail points, factories,... to help determine the volume of goods such as agriculture products, livestocks, materials and so on.

►Measurement range: 2 kg – 120 kg

►Graduation value: 200 g

►From 2 kg to 10 kg: the maximum permissible error is ± 100 g

►From 10 kg to 40 kg: the maximum permissible error is ± 200 g

►From 40 kg to 120 kg: the maximum permissible error is ± 300 g

►Dial face diameter: 12 inches

►Product dimensions (L x W x H): (470 x 450 x 430) mm

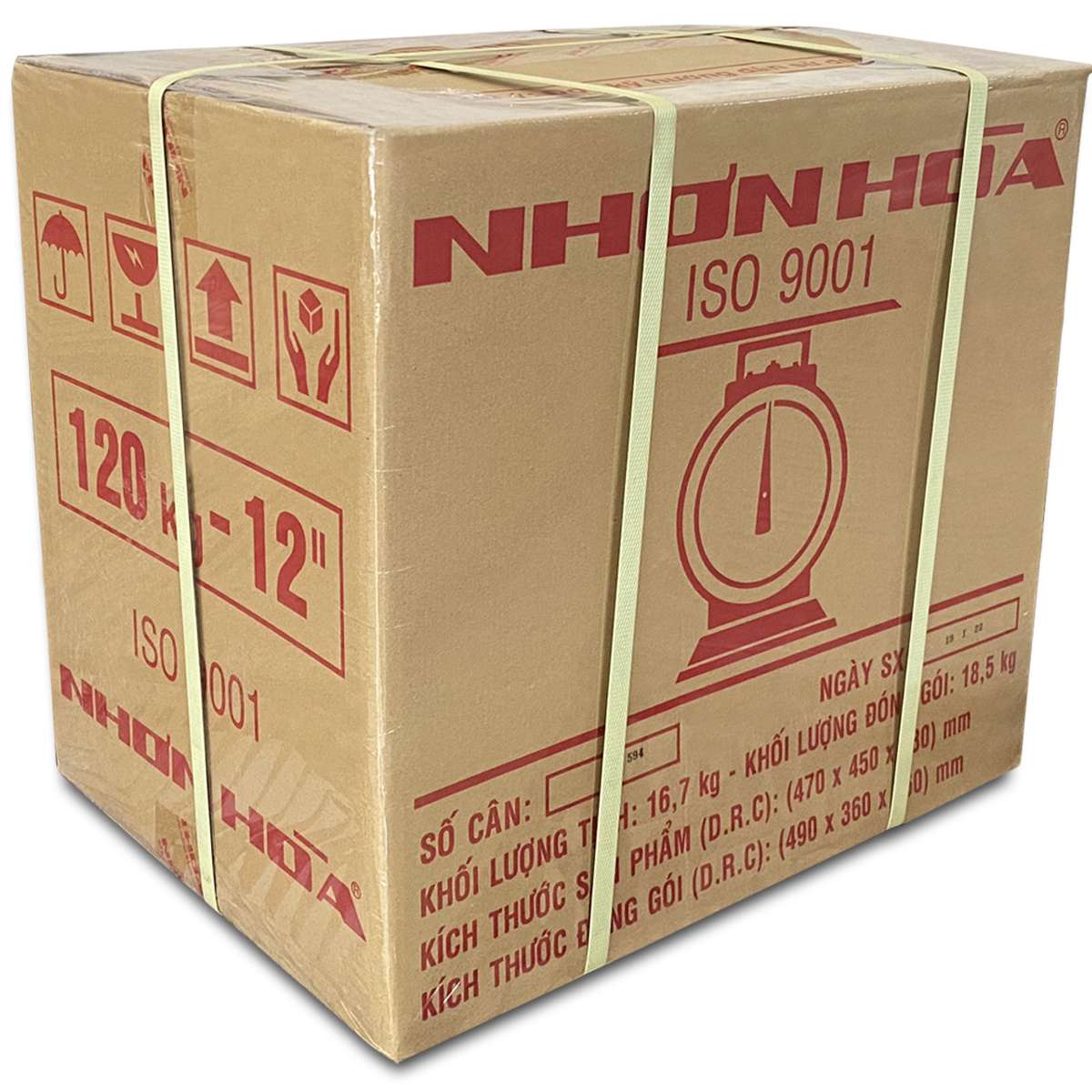

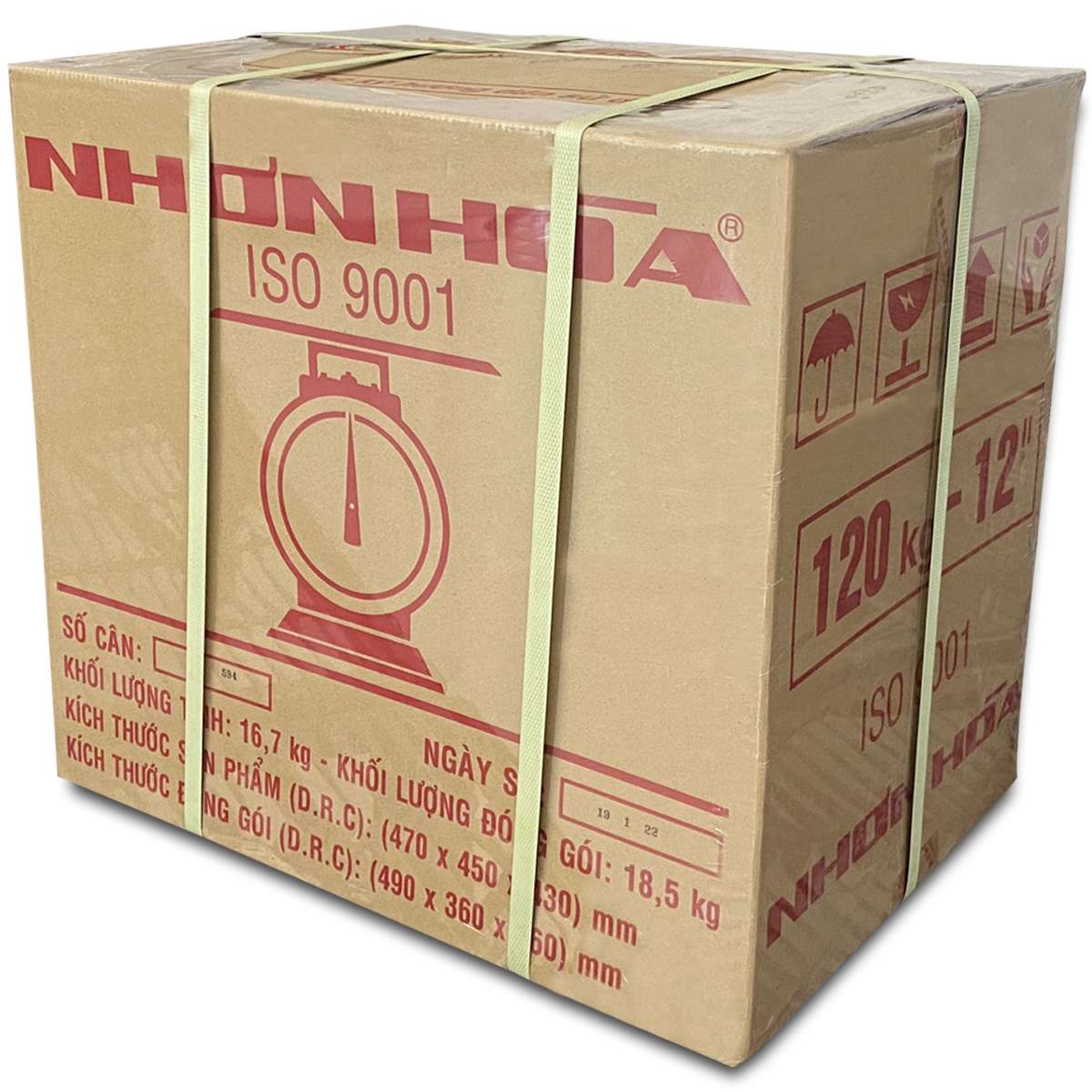

►Packaging dimensions (L x W x H): (490 x 360 x 460) mm

►Gross weight: 18,5 kg

►Square flat stainless steel platform (450 x 330 x 3) mm

PRODUCT FEATURES

✅ Scale housing is shaped from mild-steel and coated with electrostatic powder paint, which increases durability and protects from external environment.

✅ Dial face is made of ABS plastic. With numerical values and markings are digitally printed with high quality, the scale divisions can be read easily.

✅ Springs are made of standard Carbon steel for flexibility, Nickel plated or black plated to prevent form corrosion.

✅ Cotter pins are made of stainless steel.

✅ The other parts are made of mild-steel, coated with anti-rust Nickel.

MEASURING SPECIFICATION

✅ Products are checked according to ĐLVN 30:2019 (in accordance with OIML R76-1:2006). Scales are stricly manufactured and controlled under the Quality Management System ISO 9001.
