Video VIEW

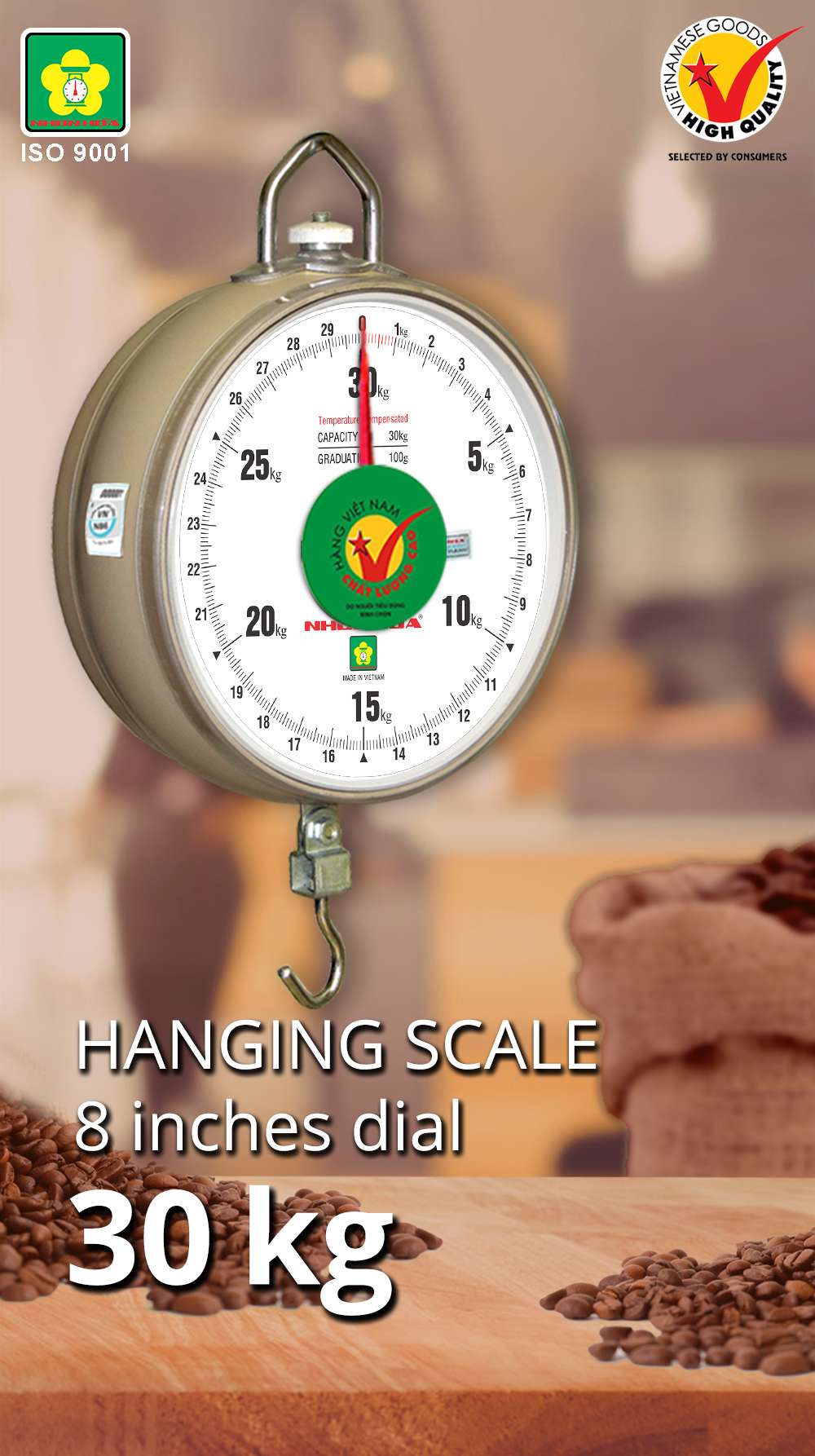

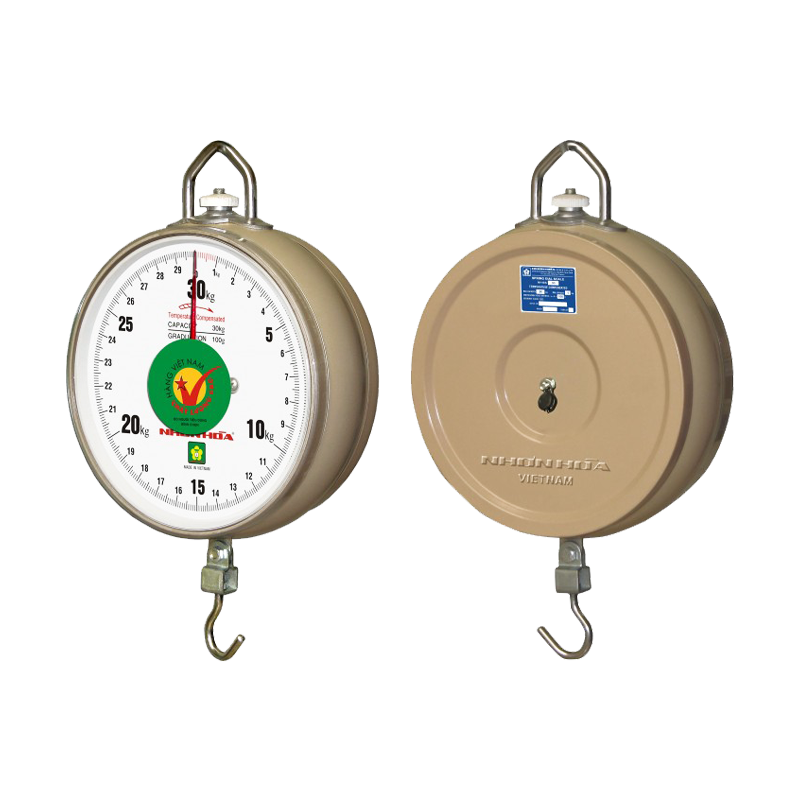

HANGING SCALE 30 kg

8 inches single dial face

• Product code: NHGS – 30 – 1F

• Measuring range: 1 kg – 30 kg

• Graduation value: 100 g

• Degree of accuracy: 4

• Product dimensions: (360 x 220 x 80) mm

• Net weight: 1,85 kg

PRODUCT DETAILS (NHGS – 30 – 1F)

Single face hanging scale 30 kg is being widely used on boats or in markets, supermarkets, seafood restaurants, shops and so on.

►Measurement range: 1 kg – 30 kg

►Graduation value: 100 g

►From 1 kg to 5 kg: the maximum permissible error is ± 50 g

►From 5 kg to 20 kg: the maximum permissible error is ± 100 g

►From 20 kg to 30 kg: the maximum permissible error is ± 150 g

►Dial face diameter: 8 inches

►Product dimensions (L x W x H): (360 x 220 x 80) mm

►Packaging dimensions (L x W x H): (290 x 100 x 265) mm

►Gross weight: 2 kg

PRODUCT FEATURES

✅ The Hanging Scale Housing is made of composite aluminium material and power-coated in light brown color, which increases durability and protects from external environment.

✅ 8 inches Dial Face is made of ABS plastic. With numerical values and markings are digitally printed with high quality, the scale divisions can be read easily.

✅ Springs are made of standard Carbon steel for flexibility, Nickel plated or black plated to prevent form corrosion.

✅ Depending on load level, each type of scale has a hanging hook design with the appropriate bearing capacity to hang the objects.

MEASURING SPECIFICATION

✅ Products are checked according to ĐLVN 30:2019, issued on December 31, 2019, based on Decision 2832/QĐ-TĐC of the Directorate for Standards, Metrology and Quality (STAMEQ).
