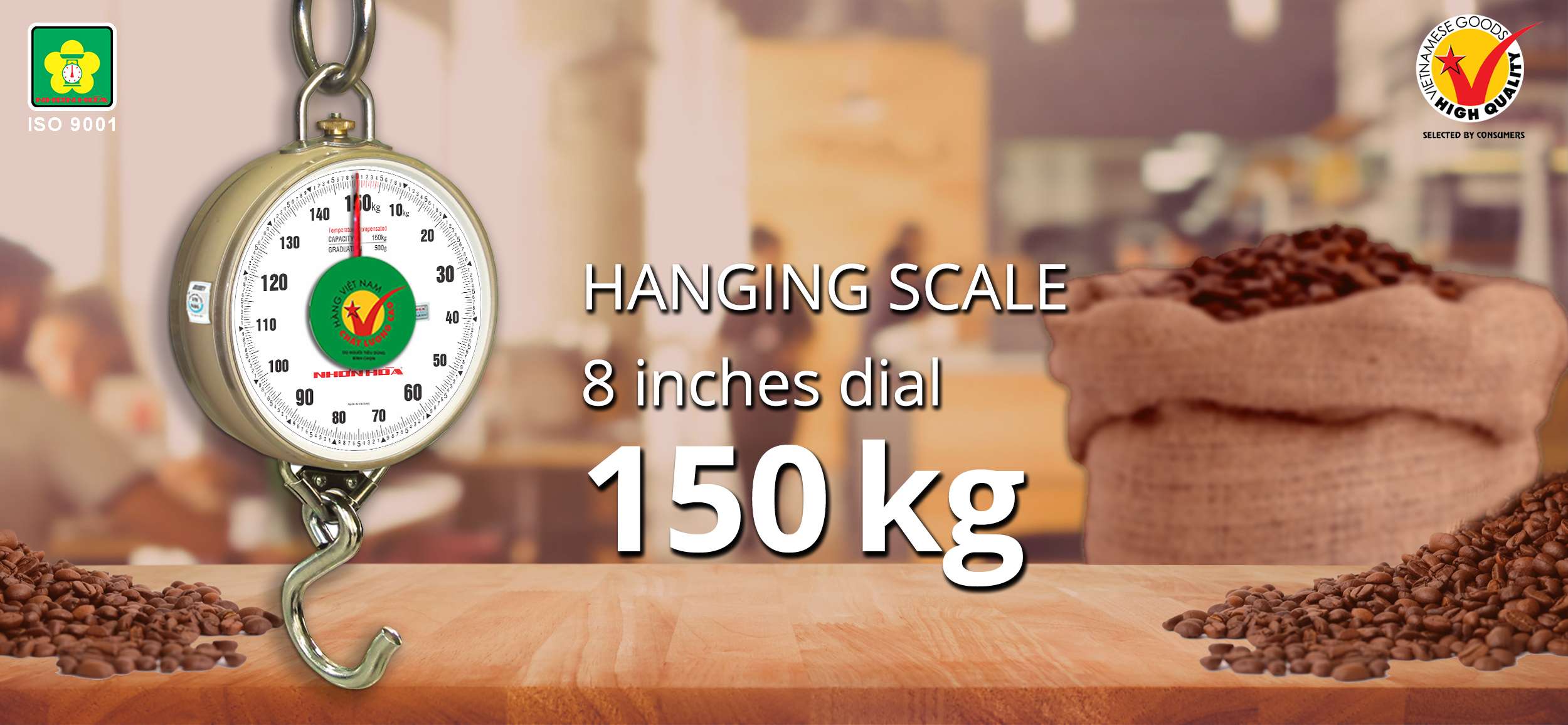

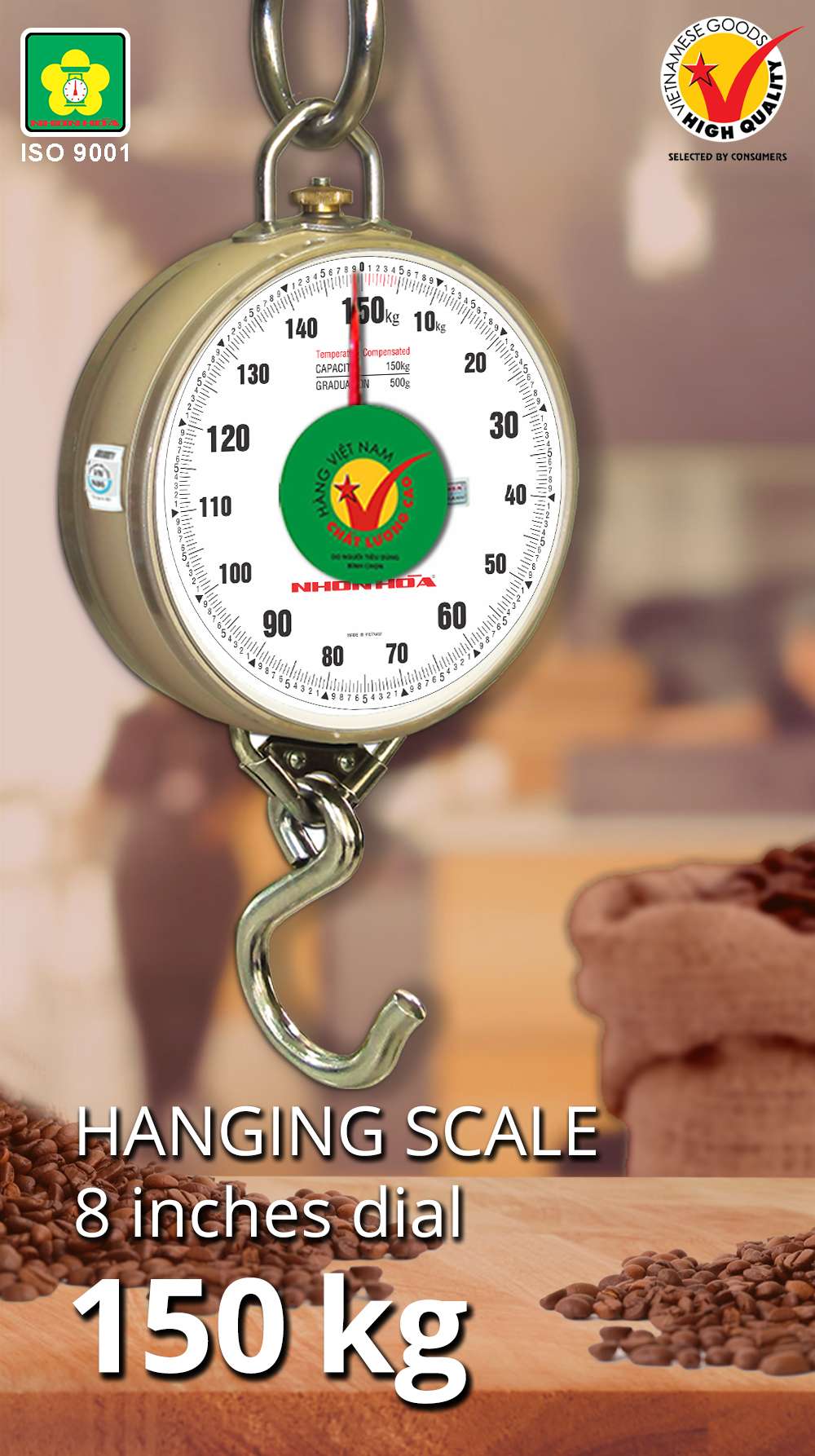

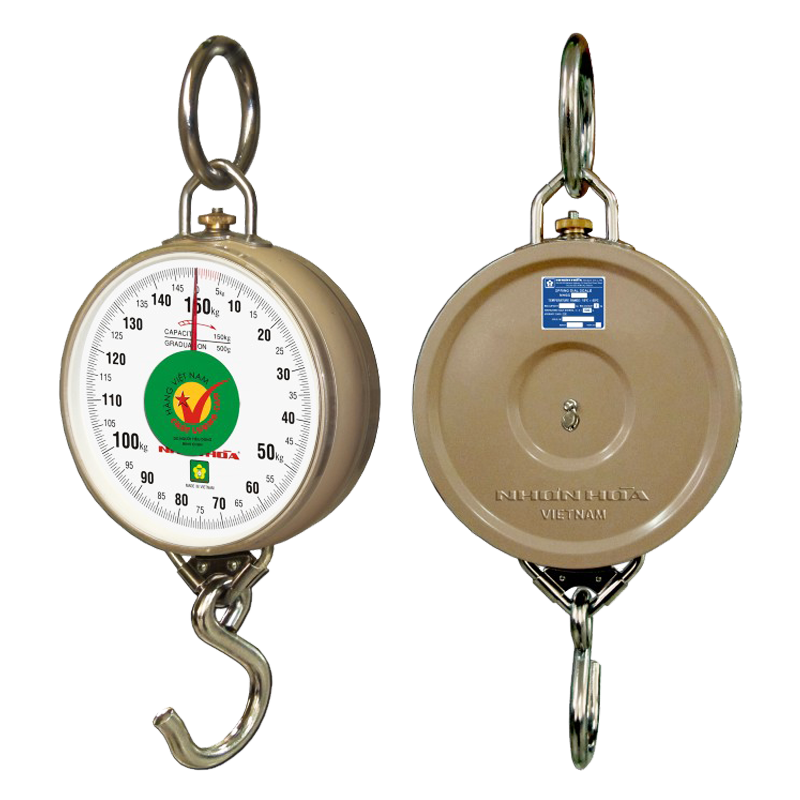

HANGING SCALE 150 kg

8 inches single dial face

• Product code: NHGS – 150 – 1F

• Measuring range: 5 kg – 150 kg

• Graduation value: 500 g

• Degree of accuracy: 4

• Product dimensions: (475 x 220 x 80) mm

• Net weight: 3 kg

PRODUCT DETAILS (NHGS – 150 – 1F)

Single face hanging scale 150 kg is being widely used on boats or in markets, supermarkets, seafood restaurants, shops and so on.

►Measurement range: 5 kg – 150 kg

►Graduation value: 500 g

►From 5 kg to 25 kg: the maximum permissible error is ± 250 g

►From 25 kg to 100 kg: the maximum permissible error is ± 500 g

►From 100 kg to 150 kg: the maximum permissible error is ± 750 g

►Dial face diameter: 8 inches

►Product dimensions (L x W x H): (475 x 220 x 80) mm

►Packaging dimensions (L x W x H): (290 x 100 x 265) mm

►Gross weight: 3,2 kg

PRODUCT FEATURES

✅ The Hanging Scale Housing is made of composite aluminium material and power-coated in light brown color, which increases durability and protects from external environment.

✅ 8 inches Dial Face is made of ABS plastic. With numerical values and markings are digitally printed with high quality, the scale divisions can be read easily.

✅ Springs are made of standard Carbon steel for flexibility, Nickel plated or black plated to prevent form corrosion.

✅ Depending on load level, each type of scale has a hanging hook design with the appropriate bearing capacity to hang the objects.

MEASURING SPECIFICATION

✅ Products are checked according to ĐLVN 30:2019, issued on December 31, 2019, based on Decision 2832/QĐ-TĐC of the Directorate for Standards, Metrology and Quality (STAMEQ).
